Types of Pipe Fittings and Where They Are Used
Pipe fittings are critical components in the construction and operation of piping systems. These fittings connect, direct, and modify the flow of fluids, gases, and other substances through pipes. Whether in residential plumbing, industrial systems, or specialized environments like chemical processing plants, understanding the different types of pipe fittings and their applications ensures that the right components are chosen for each task.
In this article, we will explore the various types of pipe fittings, their uses in different industries, and important considerations when choosing the right fitting for your needs.
What Are Pipe Fittings?
Pipe fittings are essential for connecting, altering the direction, and controlling the flow within a piping system. These components allow pipes to be joined together, redirected, or reduced in size to meet specific system requirements. Without pipe fittings, it would be impossible to efficiently connect different sections of piping or adjust the system to meet operational needs.
The primary function of pipe fittings is to ensure the system operates smoothly by enabling proper flow, maintaining pressure, and preventing leaks. They are used across various applications, including residential plumbing, industrial systems, water management, and HVAC (heating, ventilation, and air conditioning) systems.

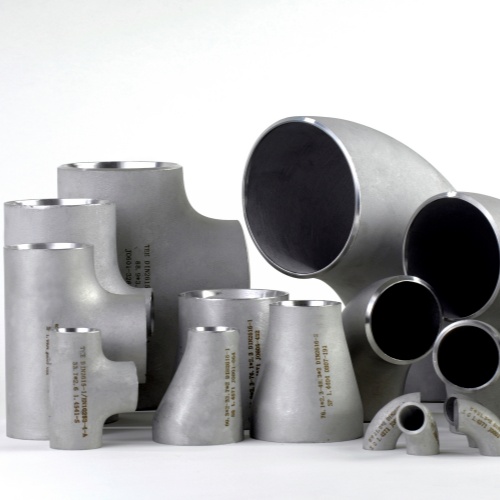

Types of Pipe Fittings
There are many types of pipe fittings, each serving specific functions depending on the needs of the piping system. Below are the most common types of pipe fittings and their uses:
Function: Elbows are used to change the direction of the pipe, typically by 90° or 45°.
Materials: Available in a range of materials, including metal, PVC, and stainless steel.
Applications: Commonly found in plumbing systems, HVAC systems, and industrial pipelines, elbow fittings are used to reroute water, air, or gas flow.
2. Tee Fittings
Function: Tee fittings are T-shaped connectors that split the flow of a pipeline into two directions.
Types: Equal tees (same pipe size on all three ends) and reducing tees (where one end is smaller than the other).
Applications: Tee fittings are widely used in water distribution systems, gas pipelines, and chemical industries to branch off the main pipeline.
3. Couplings
Function: Couplings connect two sections of pipe of the same diameter, allowing the system to continue without interruption.
Types: Regular couplings, slip couplings (to repair pipes without replacing sections), and reducing couplings (to connect pipes of different sizes).
Applications: Used in residential plumbing, irrigation systems, and industrial applications, couplings are integral for joining straight sections of pipe.
4. Reducers
Function: Reducers are used to connect pipes of different sizes, reducing the diameter of the pipe to match the system's requirements.
Types: Concentric reducers (for pipes aligned along a central axis) and eccentric reducers (for pipes that need to maintain a level bottom).
Applications: Found in industrial piping systems, water treatment plants, and oil refineries, reducers help control flow rates and pressure.
5. Caps
Function: Caps are used to seal the end of a pipe, ensuring that substances do not leak or become contaminated.
Applications: Common in maintenance and temporary piping setups, caps are often used in plumbing systems, chemical pipelines, and waste management systems.
6. Union Fittings
Function: Unions allow for the easy disconnection of pipes without cutting them. This is useful for maintenance and repairs.
Applications: Used in plumbing systems and HVAC installations, unions make it easy to disconnect and replace pipe sections.
7. Bend Fittings
Function: Bend fittings provide curves in a pipe without altering its internal diameter. This helps maintain flow efficiency while changing direction.
Applications: Commonly used in plumbing, fuel systems, and gas pipelines, bend fittings create smooth curves in systems that require direction changes.
8. Flanges
Function: Flanges are used to connect pipes securely by using bolts and gaskets, providing a strong, leak-proof connection.
Types: Weld neck flanges, slip-on flanges, blind flanges, and threaded flanges.
Applications: Found in high-pressure industrial systems, oil pipelines, and water distribution networks, flanges ensure reliable, secure pipe connections.
Materials Used for Pipe Fittings
The material of the pipe fitting determines its strength, resistance to corrosion, and suitability for specific environments. Here are some common materials used in pipe fittings:
Stainless Steel: Known for its durability and corrosion resistance, stainless steel is ideal for industrial piping systems, oil refineries, and chemical plants, especially where high temperatures and pressure are involved.
Copper: Commonly used in residential plumbing, HVAC systems, and water lines, copper offers excellent corrosion resistance and is easy to work with.
PVC: Lightweight and cost-effective, PVC fittings are widely used in residential plumbing and irrigation systems, where budget and ease of installation are priorities.
Brass: Durable and corrosion-resistant, brass fittings are ideal for gas lines, plumbing in residential and commercial applications, and systems requiring high reliability.
Aluminum: Aluminum fittings are lightweight, resistant to corrosion, and often used in marine environments and air conditioning systems.
Where Are Pipe Fittings Used?
Pipe fittings have widespread use in many industries. Below are some examples of where these fittings are commonly found:
Residential Applications
Plumbing Systems: Pipe fittings are crucial in homes for joining pipes and ensuring the proper flow of water and waste in kitchens, bathrooms, and drainage systems.
HVAC Systems: Fittings in air ducts and pipes regulate air flow in heating, ventilation, and air conditioning systems, maintaining comfort and air quality.
Industrial Applications
Manufacturing Plants: Pipe fittings are used to connect pipes in systems that transport liquids, gases, or chemicals. Common examples include chemical plants, pharmaceutical manufacturing, and oil refineries.
Examples: Tee fittings, reducers, and elbows are often used to modify flow paths or connect different pipe sizes in industrial settings.
Commercial Applications
HVAC Systems: Commercial buildings, including offices and shopping malls, require pipe fittings to ensure efficient heating, cooling, and ventilation.
Fire Sprinkler Systems: In commercial settings, pipe fittings are used in fire protection systems, ensuring water can reach sprinkler heads during an emergency.
Water and Wastewater Management
Sewer Systems: Pipe fittings play an essential role in wastewater treatment plants and stormwater drainage systems, helping to maintain efficient water flow and prevent leaks.
Stormwater Management: In rainwater drainage systems, fittings help direct water to prevent flooding, particularly in cities and industrial settings.
How to Choose the Right Pipe Fittings
When selecting the appropriate pipe fitting for your project, it is essential to consider several factors:
Pipe Material: The material of the fitting must match that of the pipe to avoid issues like corrosion or poor performance.
Size and Diameter: Ensure the fitting matches the pipe's size to ensure proper flow and prevent leaks.
Pressure Rating: Choose fittings that can handle the pressure requirements of your system to prevent failure.
Temperature Range: Some systems, such as those dealing with hot water or chemicals, require fittings that can withstand high temperatures.
Application: Consider the specific needs of the system, such as whether it's for water, gas, or chemicals, to ensure you choose the right fitting for durability and functionality.
Understanding the types of pipe fittings and where they are used is essential for ensuring the safety, efficiency, and longevity of piping systems. Whether you're working on a residential plumbing project, a chemical processing plant, or an HVAC installation, selecting the right pipe fitting is key to the system's success. By considering factors such as material, size, and application, you can make informed decisions that help ensure the system functions optimally.
When in doubt, consult with an expert or choose a reliable supplier to find the right fittings for your needs.
